LCM
Laser Control Module

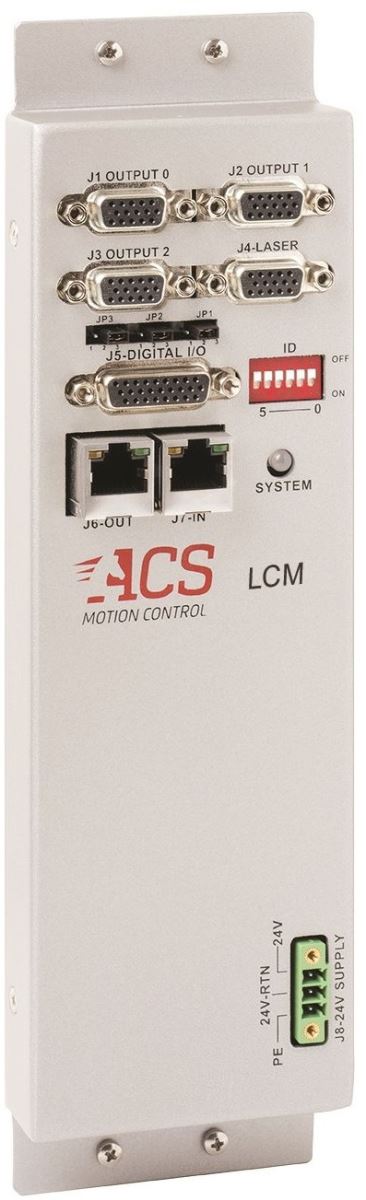

EtherCAT Laser Control Module

LCM is an EtherCAT slave module that enables ACS Controllers and Control Modules to control a laser source directly with full synchronization to motion, resulting in highest quality laser micro-machining and optimal throughput. It is able to interface with a wide range of lasers designed for processing and machining applications such as DPSS, CO2, excimer, fiber, Q-switched, picosecond, femtosecond, and more.

Functional Summary

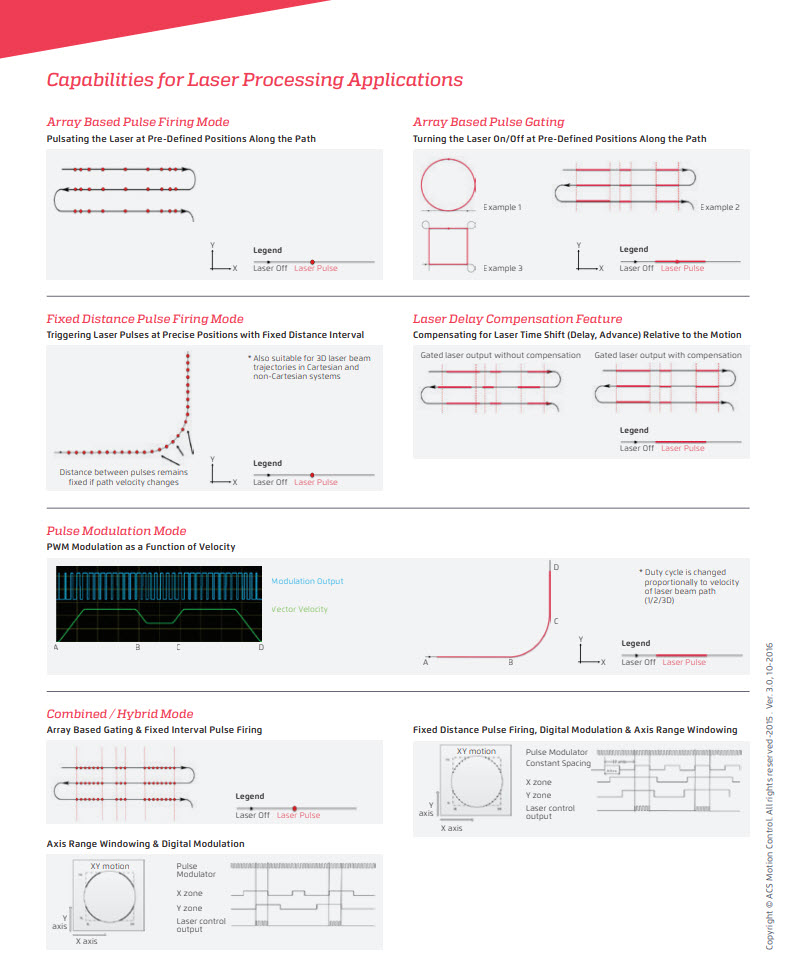

• Digital pulse modulation for dynamic laser power control
• Pulse synchronization with XYZ motion path at specific positions
• Laser gating (on/off) synchronization with XYZ motion path at specific positions
• Flexible electrical interface: laser enable output, safety interlock input, fault input for robust safety implementation, general purpose programmable I/O
• User defined operational zones
• Laser delay compensation
• Auxiliary P/D outputs
• Ability to combine control modes to meet wide ranging application requirements

• Digital Modulation Mode (for power control)
  › Fixed frequency
  › Fixed pulse width
  › Fixed duty cycle
• Tickle Mode
  › Fixed frquency and pulse width
• Fixed Distance Pulse Firing Mode
• Array Based Pulse Firing Mode
• Array Based Gating Mode
• Axis Range Windowing Mode
• Motion Capabilities (by ACS Controller)
• Rapid point to point positioning on a single or multi-axis using 3rd order interpolation
• Up to 5 axes cordinted path motion via G-Code or ACS native XSEG motion commands with advanced look-ahead and corner rounding algorithms
• Error mapping compensation
• Support for cartesian and non-cartesian systems
